Frontics’s instrumented indentation testers are high-performance devices capable of conducting non-destructive measurement of material tensile properties, residual stress, fracture toughness, and hardness in both industrial settings and laboratory environments.
Our instrumented indentation testers are classified into macro, micro, and nano categories based on measurement range and purpose, and are further divided into the AIS series and Stress Mapper series to provide optimal solutions tailored to diverse measurement needs.

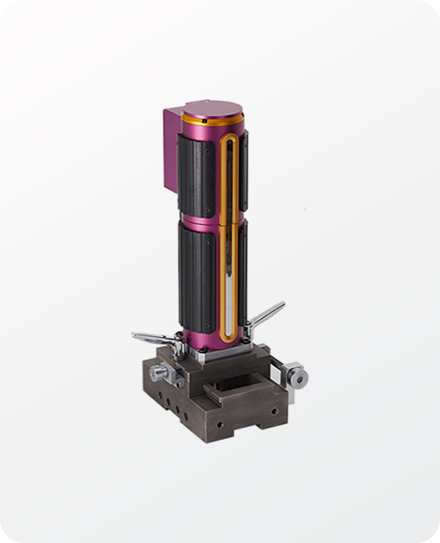

AIS3000HD
AIS3000HD
AIS3000HD
AIS3000HD

Designed for nuclear facility (radiation) and harsh environment applications,this lightweight titanium device integrates TS, RS, FT, and Hv testing capabilities in one system,and comes with dovetail fixtures for improved handling and versatility.

Features
  • - Enhanced radiation shielding, specially designed for nuclear facility operating environments
  • - Capable of measuring tensile properties, residual stress, fracture toughness, hardness, and specimen thickness
  • - Lightweight titanium dovetail structure
  • - Minimizes electromagnetic interference and noise through CAN communication
  • - Anti-vibration structure designed to operate within permissible vibration limits
Go list Inquiry
Specifications
Size
Φ90x320 mm
Resolution
2.0 gf / 0.1 μm
Weight
5 kg
Maximum Stroke
30 mm
Maximum Load
120 kgf
Applied LoadSpeed
0.05 ~ 20 mm/min
